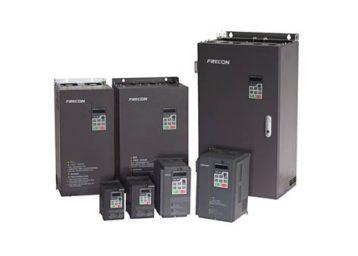

FR200 ve FR500 (yeni nesil inverter) Vektör Kontrol Drive

FR200 ve FR500 (yeni nesil inverter) Vektör Kontrol Drive

Three Phase 380V 0.75 ~710kW

FR200 ve FR500 serisi yüksek teknoloji ile üretim yapan makina imalatçıları için tasarlanmıştır. Fan, pompa ve tüm ağır şartlarlı uygulamalar için dizun edilmiştir. Sensorless Vector Kontrol  (SVC) ve VF kontrol  seçenekleri tek cihaz içinde toplanmştır. Piyasanın en üzstün özellikli ve dayanıklı sürücüsüdür.

FR100 de ki tüm özelliklerin yanısıra;

  • Tork kontrol
  • Sensorsöz vektör kontrol
  • Son teknoloji IGBT entegre edilmiştir.
  • Pano duvarına kolay montaj flanşı
  • Parametre backup lama
  • 37 kW a kadar dahili frenleme ünitesi
  • Yüksek hızlı pulse çıkışı
  • +10V ve -10 V voltaj girişi
  • Reactor built-in the equipments with 90kw or above.
  • 100 mt reye kadar destekleyen uzaktan kumanda (hız kontrol potansiyometre) obsiyonu
  • SPANSION proseccesor ile şimdi çok daha güçlü
  • Elektrolitik kapasitör teknolojisi
Satışla İletişime Geçin+90 212 8520505

FR500A Ürün model ve  teknik bilgileri

Model No.



Güç kapasitesi KVA Anma

Input Akım

A

Anma output Akım

A

Uygun Motor
kW HP
3-Phase:380V,50/60Hz  Range:-15%~+30%
FR500A-4T-0.7G/1.5PB 1.5 3.4 2.5 0.75 1
FR500A-4T-1.5G/2.2PB 3 5.0 4.2 1.5 2
FR500A-4T-2.2GB 4 5.8 5.5 2.2 3
FR500A-4T-2.2G/4.0PB 4 5.8 5.5 2.2 3
FR500A-4T-4.0G/5.5PB 6 11 9.5 3.7、4 5
FR500A-4T-5.5G/7.5PB 8.9 14.6 13 5.5 7.5
FR500A-4T-7.5GB 11 20.5 17 7.5 10
FR500A-4T-7.5G/011PB 11 20.5 17 7.5 10
FR500A-4T-011G/015PB 17 26 25 11 15
FR500A-4T-015G/018PB 21 35 32 15 20
FR500A-4T-018G/022PB 24 38.5 37 18.5 25
FR500A-4T-022G/030PB 30 46.5 45 22 30
FR500A-4T-030G/037PB 40 62 60 30 40
FR500A-4T-037GB 57 76 75 37 50
FR500A-4T-037G/045P 57 76 75 37 50
FR500A-4T-037G/045PB
FR500A-4T-045G/055P 69 92 91 45 60
FR500A-4T-045G/055PB
FR500A-4T-055G/075P 85 113 112 55 70
FR500A-4T-055G/075PB
FR500A-4T-075G/090P 114 157 150 75 100
FR500A-4T-075G/090PB
FR500A-4T-090G/110P 134 186 176 90 125
FR500A-4T-090G/110PB
FR500A-4T-110G/132P 160 220 210 110 150
FR500A-4T-132G/160P 192 260 253 132 175
FR500A-4T-160G/185P 231 310 304 160 210
FR500A-4T-185G/200P 240 355 350 185 250
FR500A-4T-200G/220P 250 382 377 200 260
FR500A-4T-220G/250P 280 430 426 220 300
FR500A-4T-250G/280P 355 475 470 250 330
FR500A-4T-280G/315P 396 535 520 280 370
FR500A-4T-315G/355P 445 610 600 315 420
FR500A-4T-355G/400P 500 665 650 355 470











frecon-fr200-model-numarasi-aciklamafrecon-fr200-terminal

FR500A Ürün model ve  teknik bilgileri

Model No.



Güç kapasitesi KVA Anma

Input Akım

A

Anma output Akım

A

Uygun Motor
kW HP
3-Phase:380V,50/60Hz  Range:-15%~+30%
FR500A-4T-0.7G/1.5PB 1.5 3.4 2.5 0.75 1
FR500A-4T-1.5G/2.2PB 3 5.0 4.2 1.5 2
FR500A-4T-2.2GB 4 5.8 5.5 2.2 3
FR500A-4T-2.2G/4.0PB 4 5.8 5.5 2.2 3
FR500A-4T-4.0G/5.5PB 6 11 9.5 3.7、4 5
FR500A-4T-5.5G/7.5PB 8.9 14.6 13 5.5 7.5
FR500A-4T-7.5GB 11 20.5 17 7.5 10
FR500A-4T-7.5G/011PB 11 20.5 17 7.5 10
FR500A-4T-011G/015PB 17 26 25 11 15
FR500A-4T-015G/018PB 21 35 32 15 20
FR500A-4T-018G/022PB 24 38.5 37 18.5 25
FR500A-4T-022G/030PB 30 46.5 45 22 30
FR500A-4T-030G/037PB 40 62 60 30 40
FR500A-4T-037GB 57 76 75 37 50
FR500A-4T-037G/045P 57 76 75 37 50
FR500A-4T-037G/045PB
FR500A-4T-045G/055P 69 92 91 45 60
FR500A-4T-045G/055PB
FR500A-4T-055G/075P 85 113 112 55 70
FR500A-4T-055G/075PB
FR500A-4T-075G/090P 114 157 150 75 100
FR500A-4T-075G/090PB
FR500A-4T-090G/110P 134 186 176 90 125
FR500A-4T-090G/110PB
FR500A-4T-110G/132P 160 220 210 110 150
FR500A-4T-132G/160P 192 260 253 132 175
FR500A-4T-160G/185P 231 310 304 160 210
FR500A-4T-185G/200P 240 355 350 185 250
FR500A-4T-200G/220P 250 382 377 200 260
FR500A-4T-220G/250P 280 430 426 220 300
FR500A-4T-250G/280P 355 475 470 250 330
FR500A-4T-280G/315P 396 535 520 280 370
FR500A-4T-315G/355P 445 610 600 315 420
FR500A-4T-355G/400P 500 665 650 355 470







FR200 Ürün model ve  teknik bilgileri

Main Power Voltage Model No. Motor Power kW Input Current          A Output Current            A Size of the Case Dimension(W*H*D)mm
380-480V AC FR200-4T-0.7G/1.5PB 0,75 3,4 2,5 F2-1 116.6*186.6*168
FR200-4T-1.5G/2.2PB 1,5 5 4,2
FR200-4T-2.2G/4.0PB 2,2 5,8 5,5
FR200-4T-4.0G/5.5PB 4.0/5.5 11 9,5 F2-2 146*249*177
FR200-4T-5.5G/7.5PB 5.5/7.5 14,6 13
FR200-4T-7.5G/011PB 7,5/11 20,5 17
FR200-4T-011G/015PB 11/15 26 25 F2-3 198*300*185
FR200-4T-015G/018PB 15/18.5 35 32
FR200-4T-018G/022PB 18,5/22 38,5 37 F2-4 255*459*220
FR200-4T-022G/030PB 22/30 46,5 45
FR200-4T-030G/037PB 30/37 62 60
FR200-4T-037G/045P 37/45 76 75 F2-5 270*590*260
FR200-4T-045G/055P 45/55 92 91
FR200-4T-055G/075P 55/75 113 112 F2-6 357*590*260
FR200-4T-075G/090P 75/90 157 150
FR200-4T-090G/110P 90/110 160* 176 F2-7 430*829.5*293
FR200-4T-110G/132P 110/132 190* 210
FR200-4T-132G/160P 132/160 232* 253
FR200-4T-160G/185P 160/185 282* 304 F2-8 500*1107*328
FR200-4T-185G/200P 185/200 326* 350
FR200-4T-200G/220P 200/220 352* 377
FR200-4T-220G/250P 220/250 385* 426 F2-9 660*1160*340
FR200-4T-250G/280P 250/280 437* 470
FR200-4T-280G/315P 280/315 491* 520
FR200-4T-315G/355P 315/355 580* 600 F2-10 810*1540*400
FR200-4T-355G/400P 355/400 624* 650
FR200-4T-400G/450P 400/450 690* 725
FR200-4T-450G/500P 450/500 765* 800 F2-11 1200*1900*480
FR200-4T-500G/560P 500/560 835* 860
FR200-4T-560G/630P 560/630 960* 990
FR200-4T-630G/710P 630/710 1050* 1100
