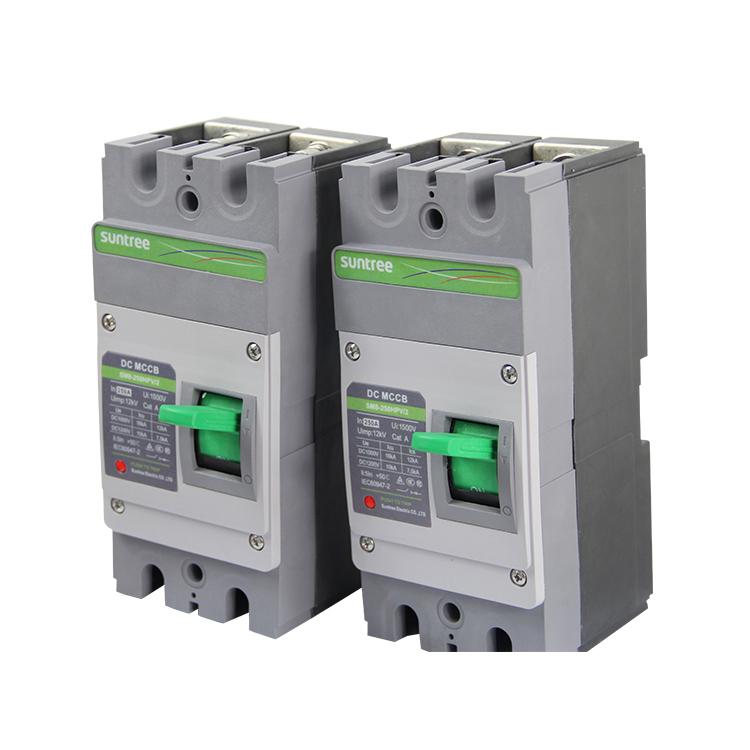

SM8 Yüksek Voltaj ve Akımlı DC Sigorta
* 1200V için 2 kutuplu 100A – 250A Akım aralığı
* 1500V için 4 kutuplu 350A – 630A Akım aralığı
* Labirent ark söndürücü, akım dalgalanmalarında arkların yayılmasını önler
* Dahili çift sıralı hareketli kontaklar Ark voltajını arttırır
* Kurulumu kolay aksesuar
* Çoklu korumaya sahiptir
* Taban, alev geciktirici için DMC malzemeden yapılmıştır
* Uluslararası TÜV, CE, CB belgelerine sahiptir
| Product model | SM8-250HPV/2/2P 1000V |
| Product name | PV DC MCCB |
| Rated service voltage Ue | DC1000V 1200V |
| Rated insulation voltage Ui | 1500V |
| Rated impulse withstand voltage Uimp | 12kV |
| Numbers of poles | 2 |
| Trip type | Thermal magnetic(thermal magnetic non adjustable) TMD fixed |
| Manufacturing standards | GB14048.2，IEC/EN 60947-2 |
| Use category | A(PV-1) |
| Current shell frame In | 250A |
| Rated service current le | 100/250/1 60/200/225/250A |
| Breaking type | H |
| Ultimate short circuit breaking capacity Icu | Ue1500v 15kA |
| Rated service short-circuit breaking capacity lcs | 75%ICU |
| Curent setting Ir | 1In |
| Instantaneous short circuit protection LiMechanical life | 6In (Min 1000A) |
| Mechanical life | 10000Times |
| Electrical life | 2000Times |
| Overall dimensions L×W×H | 90×200×86mm |
| Installation mode | Fixed |
| Ingress protection | Wiring terminal:lP20/all sides:IP40 |
| Relative humidity | Not more than 95% at +50C |
| With wiring polarity requirements or not | NO |
| Class of pollution | Level 3 |
| Service temperature | -40℃-+75℃ |
| Operation indications | ON/OFF indication |
| Whether the trip is adjustable | ON |
| Electrical accessories | Option: shunt/auxiliary/alarm (note: only one set of auxiliary, alarm and shunt can be installed on the left and right side) 2P only on the left side |
| lsolating function | Yes |
| Product model | SM8-630HPV /4 1500V |
| Product name | PV DC MCCB |
| Rated service voltage Ue | DC1500V |
| Rated insulation voltage Ui | 1500V |
| Rated impulse withstand voltage Uimp | 12kV |
| Numbers of poles | 4 |
| Trip type | Thermal magnetic (thermal magnetic non adjustable) TMD fixed |
| Manufacturing standards | GB14048.2，IEC/EN 60947-2 |
| Use category | A(PV-1) |
| Current shell frame In | 630A |
| Rated service current le | 350/400/500/630A |
| Breaking type | H |
| Ultimate short circuit breaking capacity Icu | Ue1500v 15kA Ue1500v 15kA |
| Rated service short-circuit breaking capacity Ics |
Ue1500v 15kA Ue1500v 15kA |
| Curent setting Ir | 1In |
| Instantaneous short circuit protection Li | 6In (Min 1000A) |
| Mechanical life | 10000Times |
| Electrical life | 2000Times |
| Overall dimensions L×W×H | Type H:310×240×155mm Type H:350×240×155mm |
| Installation mode | Fixed |
| Ingress protection | Wiring terminal: P20/all sides:IP40 |
| Relative humidity | Not more than 95% at +50C |
| With wiring polarity requirements or not | NO |
| Class of pollution | Level 3 |
| Service temperature | -40℃-+75℃ |
| Operation indications | ON/OFF indication |
| Whether the trip is adjustable | ON |
| Electrical accessories | Option: shuntauiliary/alarm (note: only one set of auxiliary, alarm and shunt can be installed on the left and right side) 2P only on the left side |
| Isolating function | Yes |
