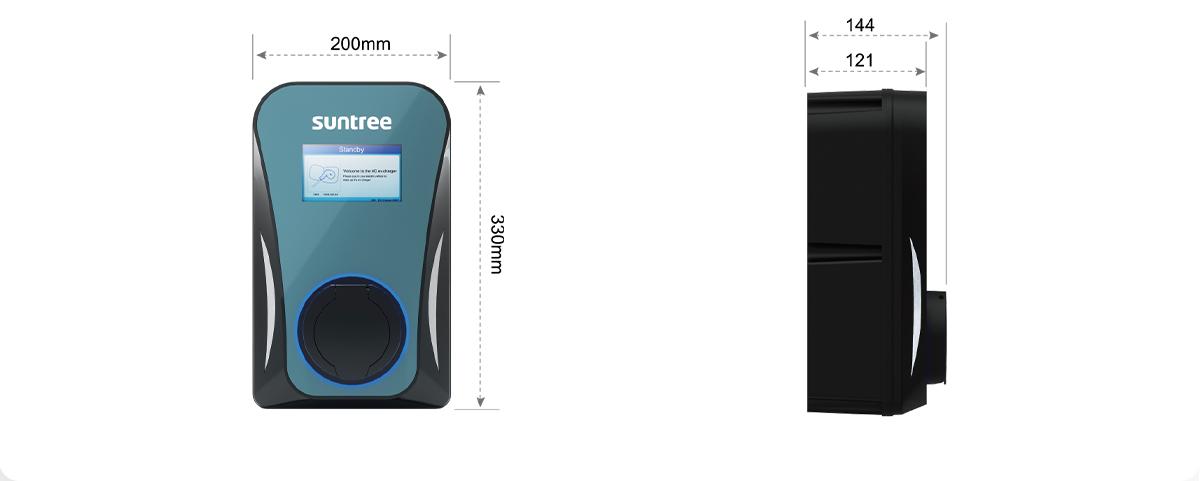

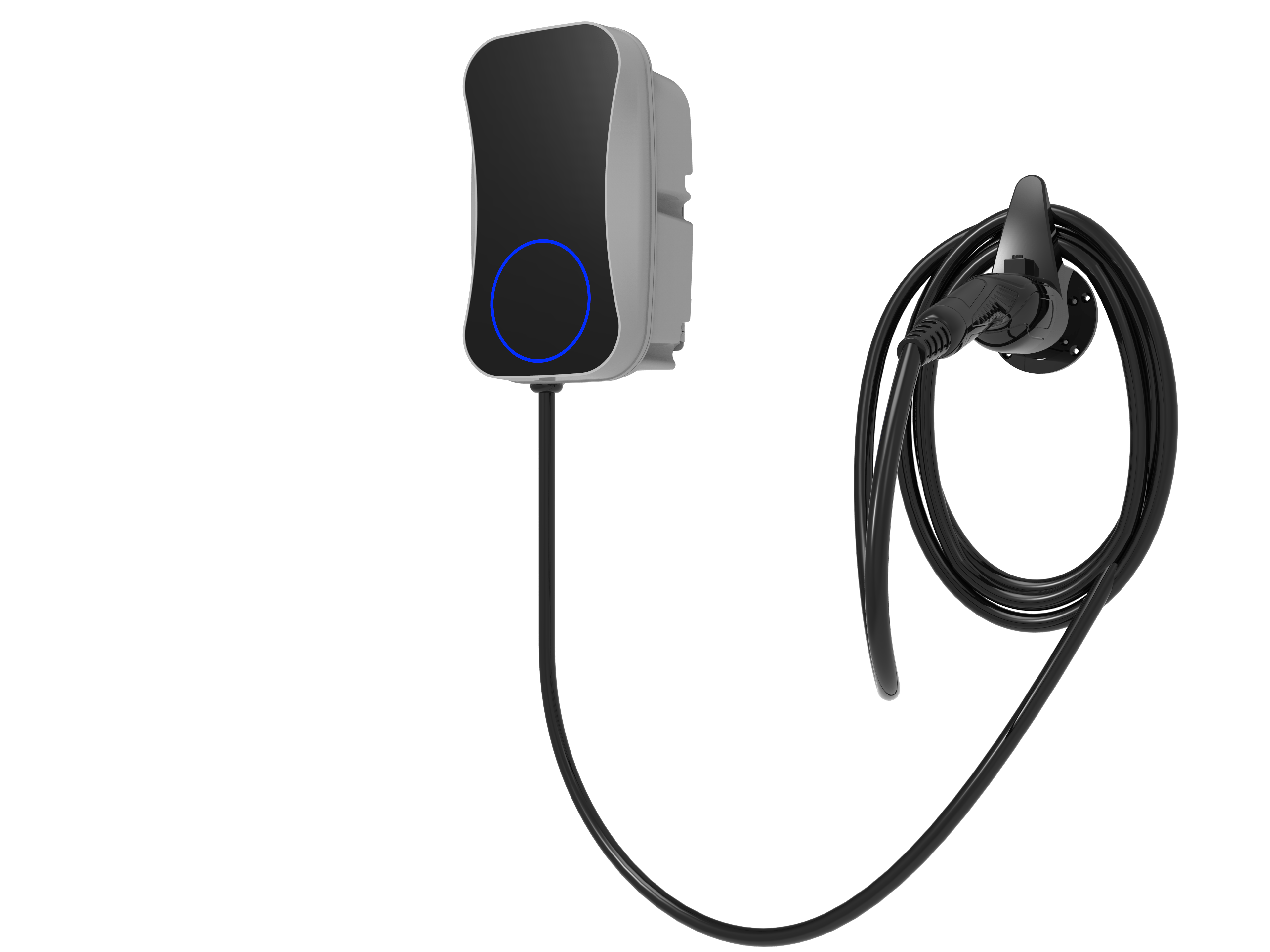

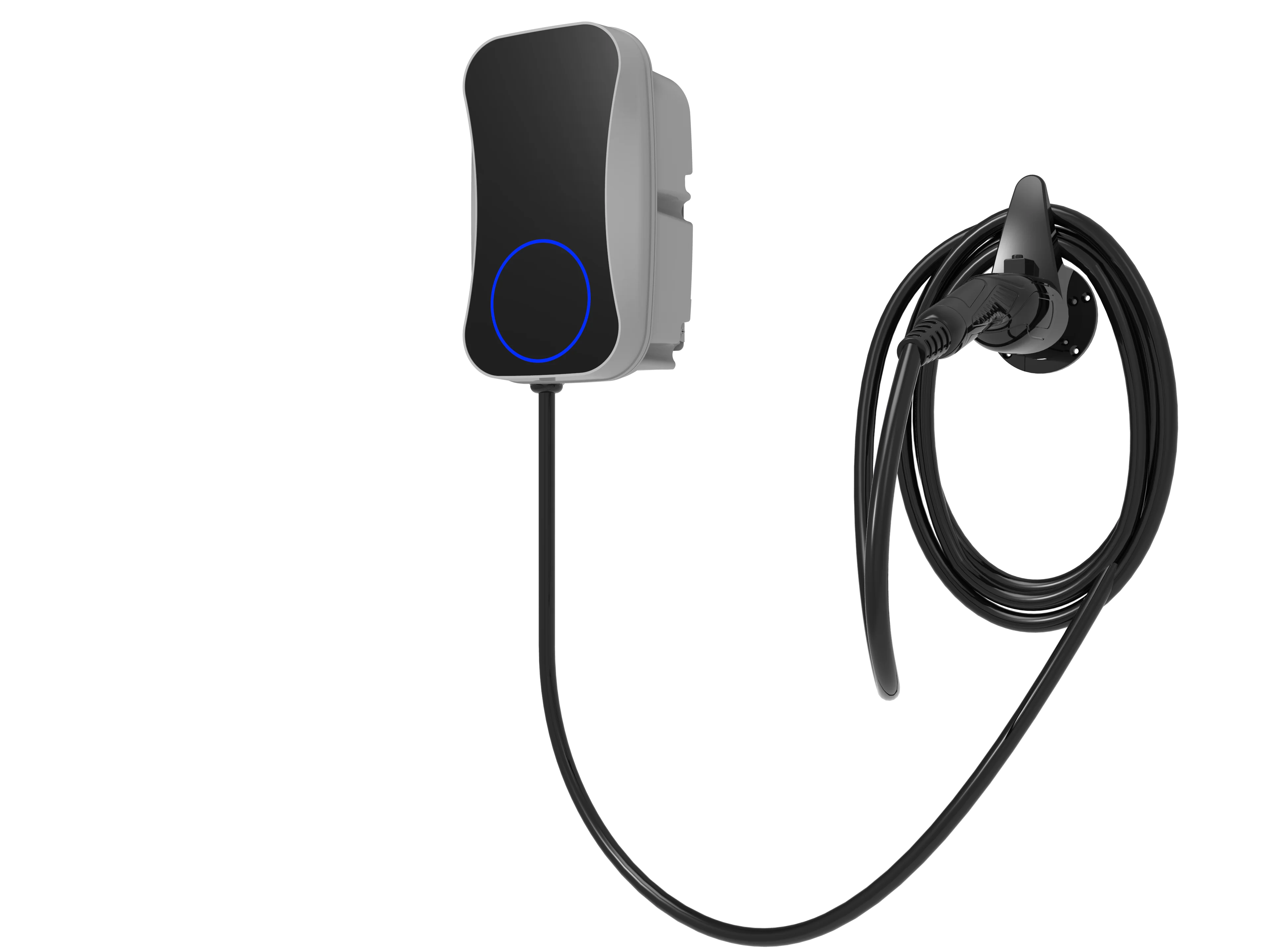

SWJ6E-22/32 (Duvar Tipi 7-22 KW Ayarlanabilir Araç Şarj Cihazı)
- Ücretsiz Smart WiFi uygulaması
- Planlayarak otomatik gece saatinde şarj edebilme
- Güneş uyumlu (sadece tek fazlı modeller)
- Kaçak akım koruması (AC 30mA Tip A, DC 6mA)
- Dinamik yük dengeleme (CT kelepçe ve kablo dahil)
- OCPP 1.6 uyumlu
- Dahili LED şarj durumu göstergesi
- Wi-Fi / Ethernet bağlantısı
- IP54 ve IK08 koruma
- Korozyona ve yangına dayanıklı
- CE ve UKCA sertifikalı
- Kurulumu ve bakımı kolaydır

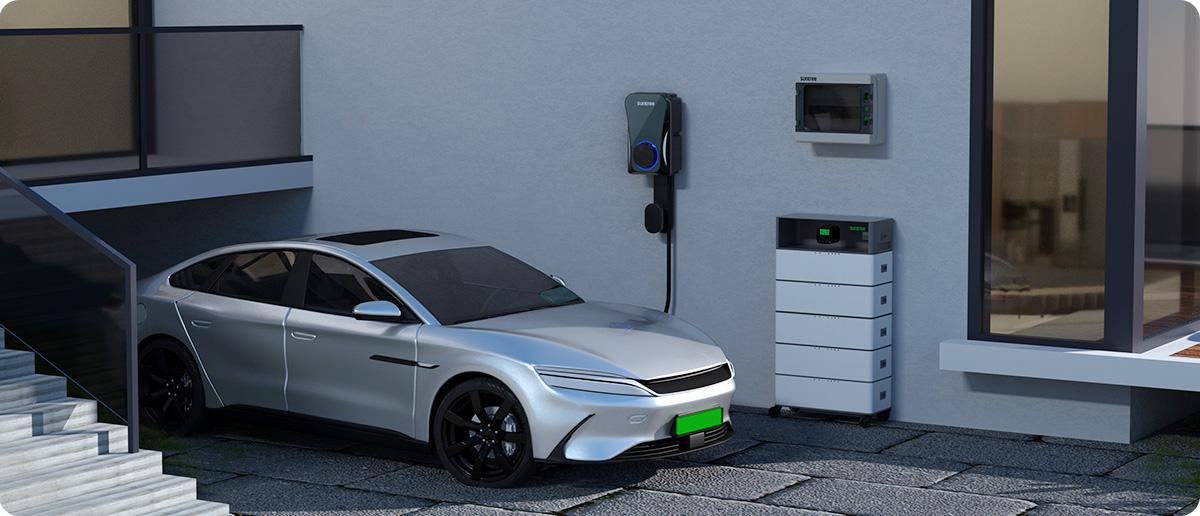

- Duvar veya direk montaj seçenekleri
| Item | SWJ6E-7 | SWJ6E-11 | SWJ6E-22 |
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 220-240V AC | 380-450V AC | 380-450V AC |
| Rated Current | Max 32A (6-32A adjustable) | ||
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Voltage | 220-240V AC | 380-450V AC | 80-450V AC |
| Maximum Current | 32A | 16A | 32A |
| Rated Power | 7KW | 11kw | 22 kw |
| Charger socket or conne ctor | Type 2 | ||
| Cable Length | 5/7/10 M Optional | ||
| Cover Material | PC+ABS Allay | ||
| LED Indicator | Red/Blue/Green | ||
| LCD Display | LCD Display OptionalMIFARE ISOVIEC 14443-A | ||
| RFID Reader | Plug-in & ChargeRFID Card /APP | ||
| Start Mode | Support | ||
| Emergency Stop | Optional | ||
| Wifi | 4G Optional | ||
| 3G/4G15G | Support | ||
| Ethernet | Support | ||
| Bluetooth | 0CPP1.6J (support upgrade to 0CPP2.0 ) Optional | ||
| Communication Protocol | Type A+6mA DC (Equal to Type B) / Type A | ||
| Resldual Current Protection | IP65 | ||
| IP Degree | IK08 | ||
| lmpact protection | |||
| Multiple Protection | Over/Uinder Current frotectlon , $hort Clrcuit Protection, Ground Protection , $urge Protectian. Over/Under Vollage Protection, Over/Under Temperaure Proieclion, Earth Check |
||
| Pen Fault Protection | Optional | ||
| Certification Standard | EN IEC 61851-1:2019:EN IEC 61851-21-2:2021: ENIEC 61000-6-2.EN IEC 61000-6-4 |
||
| Warranty | 2 Years | ||
| Installation | Wall-Mounting (Column Optional) | ||
| Work Temperature | -30℃-50℃ | ||
| Storage Temperature | -40℃~70℃ | ||
| Work Humidity | 5% -95%RH | ||
| Work Altitudie | <2000M | ||
| Weight | 2.1kgs/4kgs | 2.2kgs/4kgs | 2.2kgs/5kgs |
| Dynamic Loading Balance(DLB) | CT DLB Optional | ||
| Standby Power | <10W | ||
